Forged Aluminum Steering Knuckle (Snowmobile): Ski Spindle Arm

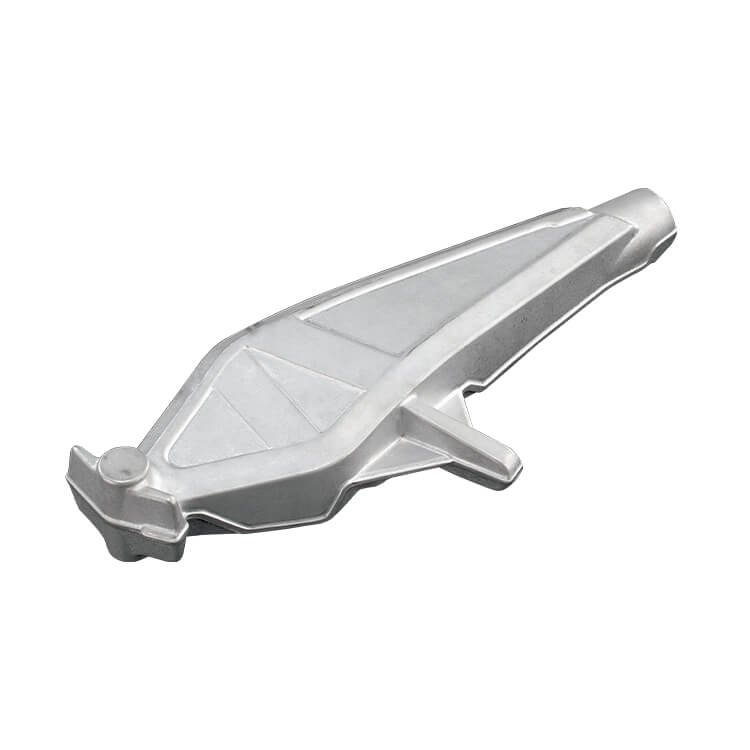

This forged aluminum steering knuckle is the spindle arm of a snowmobile's front ski steering system. It is a slender wedge-shaped body with reinforcing ribs and lightening pockets, a ski-axle mount at the lower end and suspension and tie-rod pickup points along the top and side. Snowmobiles steer through their front skis, so the knuckle carries snow-surface impacts and steering torque.
Forging a slender wedge with ribs requires material to be distributed evenly along the length. Al Forge Tech (AFT) closed-die hot forges the part so grain flow runs continuously along the long axis and forms the lightening pockets during forging to reduce machining. After heat treatment, the axle bore and pickup points are CNC-machined and verified on CMM.
Key Features
- Slender wedge body hot forged with grain flow along the long axis
- Ribs and lightening pockets forged in for stiffness and low weight
- Ski-axle seat, steering and suspension pickups CNC-machined
- Suited to cold, high-impact snow steering systems
Forged Aluminum Steering Knuckle (Snowmobile) Specifications and Manufacturing Capability
| Item | Details |
|---|---|
| Product category | Aluminum Forging Vehicle Parts |
| Application | Snowmobile front ski steering systems |
| Primary process | Closed-die hot forging (hot forging presses 600T–8,000T) |
| Material | Per customer specification; 6xxx alloys common for chassis and suspension parts (e.g. 6061, 6082, 6110), 7xxx evaluated for higher strength |
| Heat treatment | In-house T4 solution treatment (8 units) and T6 artificial aging (7 units), set by alloy and strength requirement |
| Secondary machining | CNC machining (52 machining centers, 30 lathes), deburring, vibratory finishing |
| Surface finish | Anodizing (including hard anodizing), shot blasting, e-coating or painting, as required |
| Inspection | Zeiss CMM (4 units), hardness testers, spectrometer, fluorescent penetrant line; tensile and fatigue testing available |
| Dimensions and tolerances | Per customer 2D/3D drawings |
| Quality system | IATF 16949:2016, ISO 14001:2015 |
Forged Aluminum Steering Knuckle (Snowmobile) Manufacturing Process
- Drawing review and DFM: we confirm alloy, load direction and critical dimensions, then run QForm simulation to predict metal flow and defect risk.
- Die design and manufacturing: the number of die sets (for example, blocker and finisher dies) is planned around part complexity, and die contours are checked with a portable 3D scanner.
- Hot forging: closed-die forming on 600T–8,000T hot forging presses creates a continuous grain flow that follows the part contour.
- Heat treatment: T4 solution treatment and T6 artificial aging are performed in-house, with parameters set by alloy and strength requirement.
- CNC machining and finishing: holes, threads and mating surfaces are machined, followed by deburring, vibratory finishing, shot blasting or anodizing as required.
- Inspection and shipment: dimensions, hardness and chemical composition are verified with CMM, hardness testers and a spectrometer, with lot traceability kept under IATF 16949.
FAQ
How does a snowmobile knuckle differ from a wheeled-vehicle knuckle?
A wheeled-vehicle knuckle is built around a hub-bearing seat with control-arm and caliper mounts around it. A snowmobile knuckle connects to the front ski, typically as a slender body with a ski-axle seat at the bottom; it mainly carries snow impacts and steering torque and needs no caliper ears. Their sections and load paths differ, so die and alloy planning are adjusted accordingly.
How is heat-treatment distortion avoided on slender forgings?
Slender forgings can bow during quenching due to uneven cooling. AFT balances sections at the design stage, controls furnace loading during heat treatment and straightens after quenching. Critical holes are CNC-machined after heat treatment so distortion does not affect hole accuracy, and the result is confirmed on CMM.
Is heat treatment for the Forged Aluminum Steering Knuckle (Snowmobile) done in-house?
Yes. Al Forge Tech operates 8 T4 solution treatment units and 7 T6 artificial aging units on site, so the Forged Aluminum Steering Knuckle (Snowmobile) can be solution treated, quenched and aged in the same facility before machining and inspection. Keeping heat treatment in-house removes inter-plant transport, reduces lead-time risk and keeps lot traceability within one quality system. Parameters are set according to the alloy grade and your specification.
Can you assess forging feasibility while the Forged Aluminum Steering Knuckle (Snowmobile) is still in design?
Yes. Al Forge Tech works mainly as an OEM supplier, and our engineers can give design-for-manufacturability (DFM) feedback at the concept or drawing stage, such as adjusting thin ribs, abrupt section changes or draft angles to avoid laps and underfill. QForm simulation predicts metal flow early, and the results are cross-checked against our die design experience.
Can the Forged Aluminum Steering Knuckle (Snowmobile) be anodized or given other surface finishes?
Yes. Al Forge Tech offers anodizing (including hard anodizing), shot blasting, vibratory finishing, e-coating and painting, plus pickling and ultrasonic washing lines to clean parts after machining. Please note the finish type and film thickness on the drawing so machining allowances and cosmetic standards for the Forged Aluminum Steering Knuckle (Snowmobile) can be evaluated together.
Request a Quote for the Forged Aluminum Steering Knuckle (Snowmobile)
Developing a new Forged Aluminum Steering Knuckle (Snowmobile) or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
