Forged Aluminum Gear Shift Lever: Aftermarket Short-Throw Shifter for Modified Cars

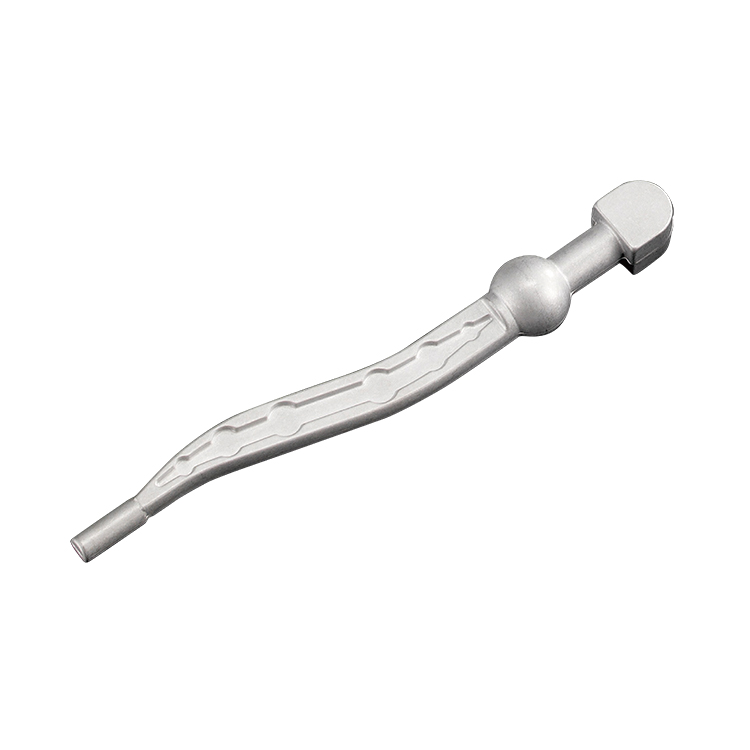

The forged aluminum gear shift lever is a manual shifter for the automotive aftermarket and modified cars. It has a slender curved shaft, a spherical pivot at mid-length, a square mounting head at the top and lightening grooves along its sides. Aftermarket shifters are used to change shift throw and feel, so the shaft must balance stiffness, weight and appearance.

Al Forge Tech (AFT) hot forges the curved shaft, spherical pivot and mounting head so grain flow runs continuously through the pivot, reducing the waste of machining a curved shape from bar. After forging, the lever can be heat treated, mounting holes and threads CNC-machined, and the part dye-anodized or shot-blasted to the brand's requirement, suiting multi-color aftermarket product lines.

Key Features

• Curved shaft, spherical pivot and mounting head forged in one piece
• Side lightening grooves balance stiffness and weight
• Dyed anodizing and shot blasting suit multi-color product lines
• Mounting holes and threads CNC-machined

Forged Aluminum Gear Shift Lever Specifications and Manufacturing Capability

Forged Aluminum Gear Shift Lever Manufacturing Process

1. Drawing review and DFM: we confirm alloy, load direction and critical dimensions, then run QForm simulation to predict metal flow and defect risk.
2. Die design and manufacturing: the number of die sets (for example, blocker and finisher dies) is planned around part complexity, and die contours are checked with a portable 3D scanner.
3. Hot forging: closed-die forming on 600T–8,000T hot forging presses creates a continuous grain flow that follows the part contour.
4. Heat treatment: T4 solution treatment and T6 artificial aging are performed in-house, with parameters set by alloy and strength requirement.
5. CNC machining and finishing: holes, threads and mating surfaces are machined, followed by deburring, vibratory finishing, shot blasting or anodizing as required.
6. Inspection and shipment: dimensions, hardness and chemical composition are verified with CMM, hardness testers and a spectrometer, with lot traceability kept under IATF 16949.

FAQ

Why choose forged aluminum for an aftermarket shift lever?

An aftermarket shifter must stay rigid under frequent driver input while being light and looking good. Forged aluminum has a dense structure and higher strength than castings, with continuous grain flow through the pivot and curved shaft. Forged surfaces also take dyed anodizing well for consistent color, making it easy to plan an aftermarket line in several colors.

How is the accuracy of the spherical pivot controlled?

The spherical pivot is the center of the lever's motion, and its size and surface affect shift feel. AFT forges the sphere to a near-net contour and then turns or CNC-finishes it to the required tolerance, measuring sphere diameter and position on CMM. If the sphere runs in a bushing or polymer seat, please specify the fit tolerance and surface roughness on the drawing.

Can the Forged Aluminum Gear Shift Lever be anodized or given other surface finishes?

Yes. Al Forge Tech offers anodizing (including hard anodizing), shot blasting, vibratory finishing, e-coating and painting, plus pickling and ultrasonic washing lines to clean parts after machining. Please note the finish type and film thickness on the drawing so machining allowances and cosmetic standards for the Forged Aluminum Gear Shift Lever can be evaluated together.

How does a forged aluminum Forged Aluminum Gear Shift Lever compare with casting or machining from billet?

Forging shapes aluminum in the solid state under pressure, so the grain flow follows the part contour and the porosity and shrinkage common in castings are avoided. Compared with machining from solid billet, a near-net-shape forging removes less material and shortens machining time. For a Forged Aluminum Gear Shift Lever under repeated loads, forging balances strength and weight; the final choice still depends on design loads and volume.

What information do you need to quote the Forged Aluminum Gear Shift Lever?

Please send a 3D model and 2D drawing, alloy grade and temper, critical tolerances, surface finish requirements, estimated annual volume and target delivery date. Complete data lets our engineers judge forging feasibility, the number of die sets and the machining scope for the Forged Aluminum Gear Shift Lever at the quotation stage. If the design is still conceptual, a sketch is enough to start a DFM discussion.

Request a Quote for the Forged Aluminum Gear Shift Lever

Developing a new Forged Aluminum Gear Shift Lever or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
