Lower Control Arm

Forged Aluminum Lower Control Arm (Three-Wheeler): Front Suspension A-Arm

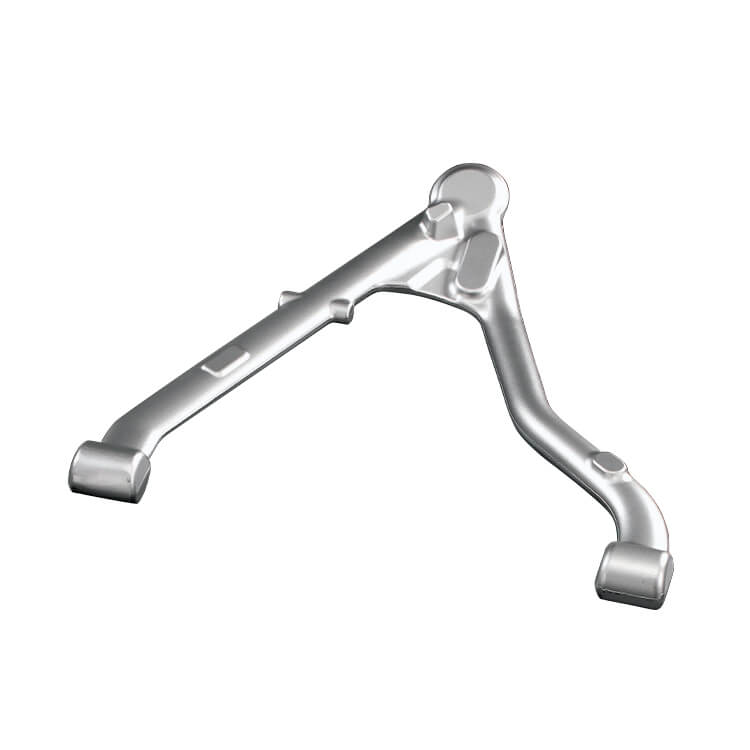

This forged aluminum lower control arm is the lower A-arm of a three-wheeled motor vehicle's front suspension. Two arm members meet at the front in a V shape, with a ball-joint mount at the apex and bushing seats at the ends of the arms that attach to the chassis. The control arm locates the wheel and carries multi-directional loads from steering, braking and road impacts.

As a vehicle safety part, the control arm is closed-die hot forged by Al Forge Tech (AFT) so grain flow runs continuously along both arms into the ball-joint seat, with in-house T4/T6 heat treatment to reach the required strength. The ball-joint seat and bushing bores are CNC-machined after forging, hole positions and relative angles are checked on CMM, and tensile and fatigue testing can support validation.

Key Features

• V-shaped A-arm hot forged in one piece with continuous grain flow
• Lightweight aluminum reduces unsprung mass
• Ball-joint seat and bushing bores CNC-finished
• Tensile, fatigue and fluorescent penetrant testing available

Forged Aluminum Lower Control Arm (Three-Wheeler) Specifications and Manufacturing Capability

Forged Aluminum Lower Control Arm (Three-Wheeler) Manufacturing Process

1. Drawing review and DFM: we confirm alloy, load direction and critical dimensions, then run QForm simulation to predict metal flow and defect risk.
2. Die design and manufacturing: the number of die sets (for example, blocker and finisher dies) is planned around part complexity, and die contours are checked with a portable 3D scanner.
3. Hot forging: closed-die forming on 600T–8,000T hot forging presses creates a continuous grain flow that follows the part contour.
4. Heat treatment: T4 solution treatment and T6 artificial aging are performed in-house, with parameters set by alloy and strength requirement.
5. CNC machining and finishing: holes, threads and mating surfaces are machined, followed by deburring, vibratory finishing, shot blasting or anodizing as required.
6. Inspection and shipment: dimensions, hardness and chemical composition are verified with CMM, hardness testers and a spectrometer, with lot traceability kept under IATF 16949.

FAQ

What advantages does a forged aluminum control arm have over steel?

Aluminum has roughly one-third the density of steel, so a forged aluminum control arm designed for equivalent stiffness can significantly reduce unsprung mass, benefiting handling response and suspension action. Forging also keeps grain flow continuous along the arms, giving better strength than cast aluminum. Actual weight savings and dimensions must be redesigned and validated for the vehicle's load cases.

How does AFT validate quality on safety parts such as control arms?

AFT manages safety-part production under IATF 16949:2016. Besides CMM dimensional inspection, parts can be checked by fluorescent penetrant inspection for surface defects, hardness and composition testing, and tensile and fatigue testing to verify material performance. Inspection items and frequency follow the customer's control plan and the special characteristics on the drawing.

How do you keep the Forged Aluminum Lower Control Arm (Three-Wheeler) consistent from lot to lot?

Al Forge Tech runs incoming (IQC), in-process (IPQC) and final (FQC) inspection under IATF 16949:2016, supported by 4 Zeiss CMMs, hardness testers, a spectrometer and a fluorescent penetrant inspection line. First, middle and last pieces of every lot are checked against the die; when wear causes dimensional drift, the die is reworked to keep the Forged Aluminum Lower Control Arm (Three-Wheeler) stable across lots.

Is heat treatment for the Forged Aluminum Lower Control Arm (Three-Wheeler) done in-house?

Yes. Al Forge Tech operates 8 T4 solution treatment units and 7 T6 artificial aging units on site, so the Forged Aluminum Lower Control Arm (Three-Wheeler) can be solution treated, quenched and aged in the same facility before machining and inspection. Keeping heat treatment in-house removes inter-plant transport, reduces lead-time risk and keeps lot traceability within one quality system. Parameters are set according to the alloy grade and your specification.

How are MOQ and lead time for the Forged Aluminum Lower Control Arm (Three-Wheeler) determined?

MOQ and lead time depend on part size, number of die sets, alloy and machining scope, and are confirmed in the quotation after drawing review. The typical sequence is die development, forged samples, sample approval and then mass production. Sharing your annual volume and call-off schedule helps us plan dies and capacity for the Forged Aluminum Lower Control Arm (Three-Wheeler).

Request a Quote for the Forged Aluminum Lower Control Arm (Three-Wheeler)

Developing a new Forged Aluminum Lower Control Arm (Three-Wheeler) or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
