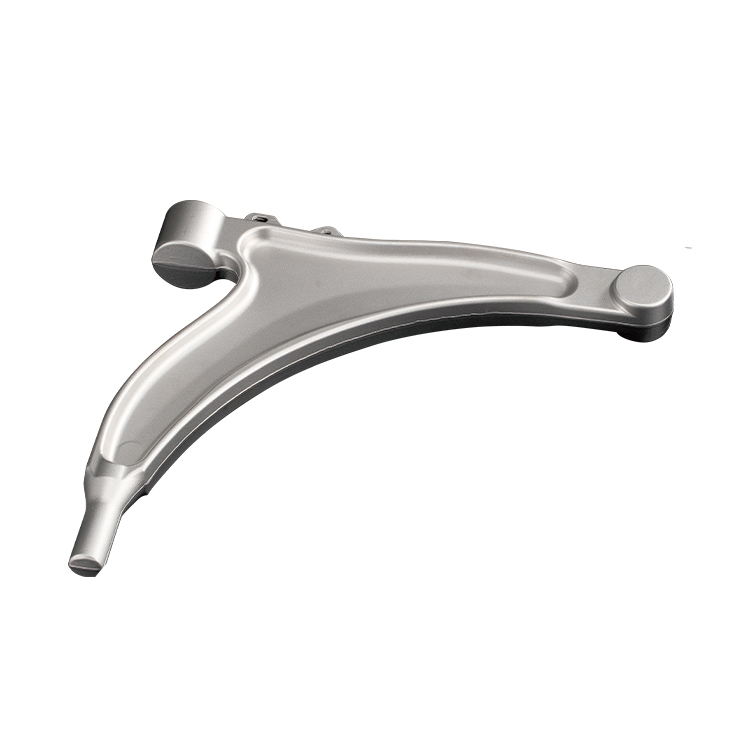

Forged Aluminum Automotive L-Shaped Lower Control Arm: MacPherson Lower Arm

The forged aluminum automotive L-shaped lower control arm is a lower arm commonly used in MacPherson-strut and similar front suspensions. It has an L-shaped body with bushing seats at the front and rear that connect to the subframe, and a ball-joint stud seat at the outer end that connects to the knuckle. In this layout the front bushing takes most lateral force and the rear bushing takes longitudinal force, balancing precise handling with ride comfort.

The lower arm carries vertical, lateral and braking loads from the wheel, and the body's corner and ball-joint root are stress concentrations. Al Forge Tech (AFT) closed-die hot forges the L-shaped body with reinforcing flanges so grain flow runs from both bushing seats through the corner into the ball-joint seat. After in-house T6 heat treatment, the bushing bores and ball-joint seat are CNC-machined and the relative position of all three mounting points verified on CMM.

Key Features

• L-shaped body, two bushing seats and ball-joint seat forged in one piece
• Flanged body for higher bending stiffness
• Relative position of three mounting points CNC-machined and CMM-measured
• Tensile, fatigue and fluorescent penetrant testing available

Forged Aluminum Automotive L-Shaped Lower Control Arm Specifications and Manufacturing Capability

Forged Aluminum Automotive L-Shaped Lower Control Arm Manufacturing Process

1. Drawing review and DFM: we confirm alloy, load direction and critical dimensions, then run QForm simulation to predict metal flow and defect risk.
2. Die design and manufacturing: the number of die sets (for example, blocker and finisher dies) is planned around part complexity, and die contours are checked with a portable 3D scanner.
3. Hot forging: closed-die forming on 600T–8,000T hot forging presses creates a continuous grain flow that follows the part contour.
4. Heat treatment: T4 solution treatment and T6 artificial aging are performed in-house, with parameters set by alloy and strength requirement.
5. CNC machining and finishing: holes, threads and mating surfaces are machined, followed by deburring, vibratory finishing, shot blasting or anodizing as required.
6. Inspection and shipment: dimensions, hardness and chemical composition are verified with CMM, hardness testers and a spectrometer, with lot traceability kept under IATF 16949.

FAQ

How is the relative position of the three mounting points ensured?

The front bushing, rear bushing and ball-joint seat of an L-shaped lower arm sit in different locations, and their relative position sets wheel alignment angles. After T6 heat treatment, AFT locates the arm in a dedicated fixture and machines all three mounting points from one datum to minimize re-clamping error, then measures position, diameter and angle on Zeiss CMM and keeps the records.

What performance factors matter when choosing a forged aluminum control arm?

The main factors are strength to carry vehicle weight and dynamic loads, fatigue durability under long-term repeated loading, corrosion resistance (inherent to aluminum and enhanced by surface treatment), weight to reduce unsprung mass, and compatibility with the suspension system. AFT recommends alloy and heat treatment based on the customer's load cases and can support tensile and fatigue validation.

How does a forged aluminum Forged Aluminum Automotive L-Shaped Lower Control Arm compare with casting or machining from billet?

Forging shapes aluminum in the solid state under pressure, so the grain flow follows the part contour and the porosity and shrinkage common in castings are avoided. Compared with machining from solid billet, a near-net-shape forging removes less material and shortens machining time. For a Forged Aluminum Automotive L-Shaped Lower Control Arm under repeated loads, forging balances strength and weight; the final choice still depends on design loads and volume.

Can you assess forging feasibility while the Forged Aluminum Automotive L-Shaped Lower Control Arm is still in design?

Yes. Al Forge Tech works mainly as an OEM supplier, and our engineers can give design-for-manufacturability (DFM) feedback at the concept or drawing stage, such as adjusting thin ribs, abrupt section changes or draft angles to avoid laps and underfill. QForm simulation predicts metal flow early, and the results are cross-checked against our die design experience.

Is heat treatment for the Forged Aluminum Automotive L-Shaped Lower Control Arm done in-house?

Yes. Al Forge Tech operates 8 T4 solution treatment units and 7 T6 artificial aging units on site, so the Forged Aluminum Automotive L-Shaped Lower Control Arm can be solution treated, quenched and aged in the same facility before machining and inspection. Keeping heat treatment in-house removes inter-plant transport, reduces lead-time risk and keeps lot traceability within one quality system. Parameters are set according to the alloy grade and your specification.

Request a Quote for the Forged Aluminum Automotive L-Shaped Lower Control Arm

Developing a new Forged Aluminum Automotive L-Shaped Lower Control Arm or converting an existing part to aluminum forging? Send us your 3D/2D drawings, alloy and temper, annual volume and finishing requirements. Our engineering team will reply with a feasibility review, die plan and quotation.
